GGB公司-微波和示波器探頭的鼻祖，自1980年來一直服務于晶圓上探測需求的全球半導體產業。1988年，GGB公司徹底改變了晶圓上微波探測的一個新的專利一同軸微波探頭，具有50歐姆共面靈活的技巧，他們的特點是工藝，精度，客戶服務和解決問題。
A high speed, high input impedance active probe for measuring the internal node voltage of integrated circuits. The input is 1 megohm shunted by 0.1 pf and the rise/fall times are 0.8 ns. This instrument has full dc capability and can be used with any oscilloscope. The Model 12C was specially designed so that when used in conjunction with a high input impedance oscilloscope, signal attenuation is 10:1 and with a 50 Ohm input, signal attenuation is 20:1.
Rugged, dependable and high speed the Model 12C presents a very modest load to the integrated circuit. It can be used to troubleshoot high speed bipolar, NMOS and CMOS circuits-even some short holding time dynamic nodes. Each amplifier is individually optimized for peak performance and reliability.
•輸入電容0.1pf
•輸入電阻1.0兆歐
•工作電壓范圍 -10 to +20V
•帶寬dc to 500
•帶射頻探針夾具源，可以同時支持兩個探頭使用（PS-2）

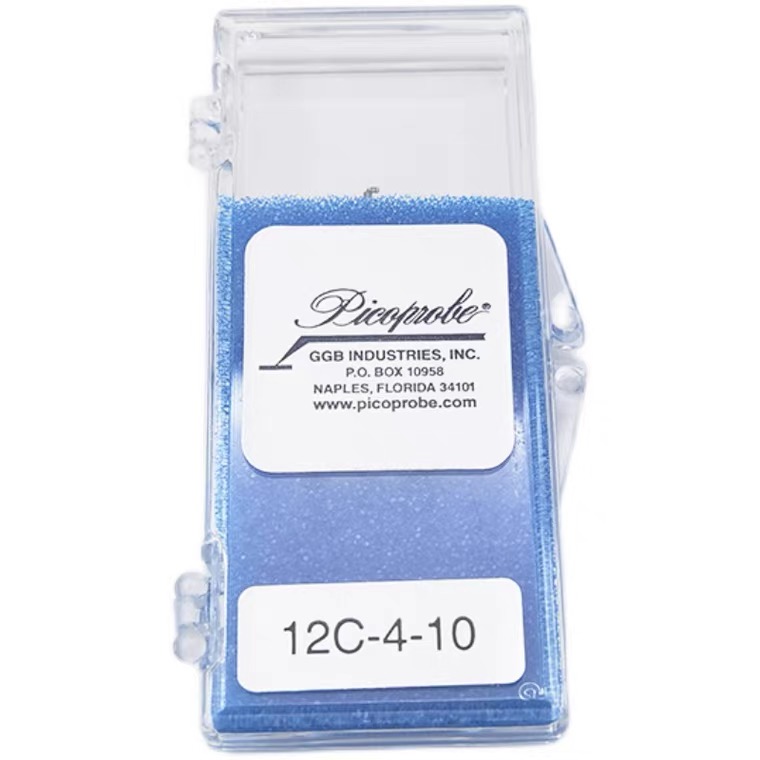

•12C夾具替換用探針（12C-x-xx Replacement tip）
